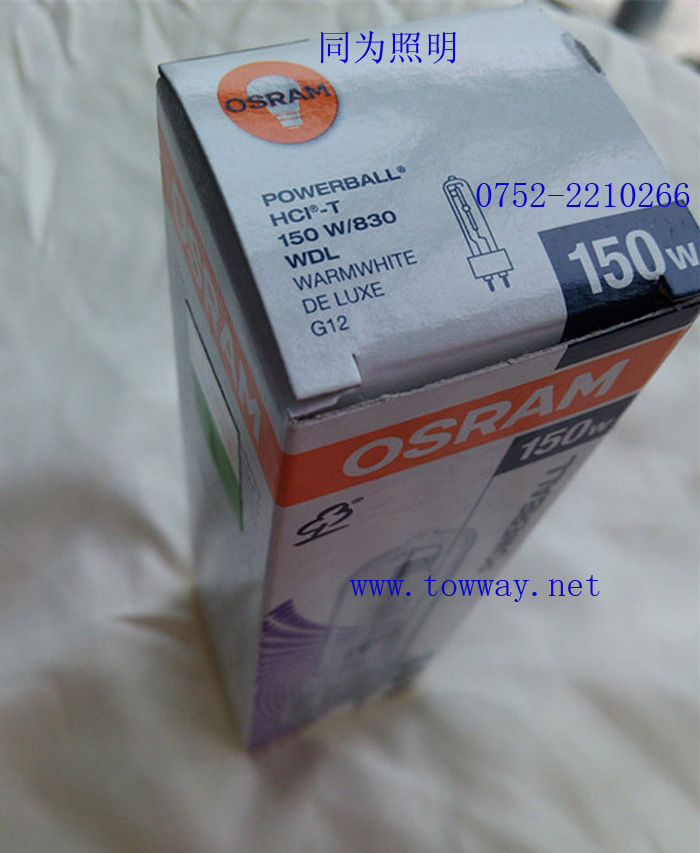

欧司朗 OSRAM HCI-T 150W/830 WDL G12 陶瓷金属卤化物灯

欧司朗 OSRAM HCI-T 150W/830 WDL G12 陶瓷金属卤化物灯产品优势

出色的显色性，出色的红色显色性，良好的颜色稳定性，高效率，借助紫外线滤光片，使紫外线辐射值明显低于IEC 61167标准中的最大允许阈值

欧司朗 OSRAM HCI-T 150W/830 WDL G12 陶瓷金属卤化物灯应用领域

商店内饰、商店橱窗，博物馆、展览馆，重点照明，仅适合用于密闭灯具，室外使用时，需安装在合适灯具中

欧司朗 OSRAM HCI-T 150W/830 WDL G12 陶瓷金属卤化物灯产品特点

POWERBALL陶瓷技术，光色：暖白（930 WDL），平均使用寿命： 15000 小时（配用 ECG，70…400 Hz 方波电流)，平均寿命：12,000 h（工作于电感镇流器），显色指数Ra：≥93

Electrical data

Nominal wattage	150 W
Rated wattage	147.00 W
Lamp current	1.80000 A
PFC capacitor at 50 Hz	20 μF
Ignition voltage	3.6 / 5.0 kVp

Photometrical data

Luminous flux	15100 lm
Luminous efficacy	103 lm/W
Color rendering index Ra	89
Color temperature	3000 K
Light color	830
Rated LLMF at 2,000 h	0.87
Rated LLMF at 4,000 h	0.81
Rated LLMF at 6,000 h	0.78
Rated LLMF at 8,000 h	0.75
Rated LLMF at 12,000 h	0.69
UV protection	Yes

Dimensions & weight

Diameter	25.0 mm
Length	105.0 mm
Light center length (LCL)	56.0 mm
Product weight	34.00 g

Temperatures

Maximum permitted outer bulb temperature	550 °C
Maximum permitted pinch temperature	350 °C

Lifespan

Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 6,000 h	0.97
Rated lamp survival factor at 8,000 h	0.96
Rated lamp survival factor at 12,000 h	0.80
Lifespan B50	15000 h
Operation mode LLMF/LSF	ECG

Additional product data

Base (standard designation)	G12
Design / version	Clear
System guarantee level	3 (2/5)
Lamp mercury content	26.4 mg

Capabilities

Dimmable	Yes
Burning position	Any
Enclosed luminaire required	Yes
Hot restart	No

Certificates & standards

Energy efficiency class	A+
Energy consumption	162 kWh/1000h
